Electrical VFD System

Name: Electrical VFD System
Brand: EXPERT CONTROL & INFOTECH
Price: 100000.00 INR
Availability: InStock

Price 100000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Electrical VFD System Specification

Shape
Rectangular Cabinet

Feature
Speed Control, Soft Start, Regenerative Braking

Power Factor
>0.94

Surface Finish
Powder Coated

Mounting Type
Wall/Panel Mount

Overheating Protection
YES

IP Rating
IP54

Efficiency
>97%

Product Type
Electrical VFD System

Application
Industrial

Protection Level
Overload, Short Circuit, Ground Fault

Frequency (MHz)
50 Hertz (HZ)

Energy Consumption
High Efficiency Operation

Output Type
AC Output

Color
Grey

Dimension (L*W*H)
650mm x 400mm x 260mm

Weight
Approx. 35 kg

Size
Standard/Custom

Phase
Three Phase

No Of Poles
3

Material
Metal Body & Electronic Components

Electrical VFD System Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA)

Delivery Time
2-8 Week

Main Domestic Market
All India

About Electrical VFD System

Electrical VFD system is an electrical device that modifies the power supplys frequency in order to alter the speed of an electric motor. By changing the power supplys frequency, it can also modify the motors speed. In addition to this, the said product also controls the frequency of a power supply. The direction of the motor can also be managed by this product. electrical VFD system is ideal for controlling fans, pumps, and compressors. Our offering can also be utilized for capacitors and fans. It is known as variable frequency drive system. This product runs on 50 hertz frequency.

Advanced Motor Control & Energy Efficiency

Take advantage of reliable speed regulation with V/F and sensorless vector control for improved motor performance and efficiency. This VFD system delivers a soft start and precise speed adjustments, while maintaining a high power factor (>0.94) and energy savings, supporting sustainable and high-demand industrial operations.

Comprehensive Protection & Robust Design

Protect your investment with extensive built-in protections, including overvoltage, undervoltage, phase loss, overload, ground fault, short circuit, and overheating safeguards. Its sturdy metal cabinet, IP54 rating, and forced air fan cooling mechanism ensure resilience in demanding industrial environments and altitudes up to 1000 m without derating.

Flexible Integration & Intuitive Operation

Easy to install via wall or panel mounting, this VFD allows for both standard and customized sizes. With digital LED display, programmable digital and analog inputs/outputs, and Modbus/RS485 interfaces, the system delivers seamless integration and control for automated industrial workflows, alongside remote access functionalities.

FAQs of Electrical VFD System:

Q: How does the communication interface of this VFD enable remote monitoring and control?

A: The RS485 communication interface, supporting Modbus protocol, allows this VFD system to connect with industrial automation systems. This facilitates remote monitoring and control, enabling operational adjustments, real-time data acquisition, and integration into centralized control architectures.

Q: What kind of protections are included in the VFD and why are they important for industrial applications?

A: The VFD is equipped with phase loss, overvoltage, undervoltage, overload, short circuit, ground fault, and overheating protection. These features prevent equipment damage, ensure operational safety, and minimize downtime by immediately responding to electrical anomalies often encountered in industrial environments.

Q: When should the regenerative braking function be utilized with this VFD?

A: Regenerative braking is ideal when fast deceleration of the connected motor is required, such as in cranes, conveyors, or elevators. It efficiently returns excess energy to the power system, enhancing safety and energy savings during frequent start-stop cycles.

Q: Where can this VFD be installed and what mounting types are supported?

A: This VFD can be installed in industrial settings and supports both wall and panel mounting. Its powder-coated metal enclosure with IP54 protection makes it suitable for use in challenging environments, providing resistance to dust and water ingress.

Q: What is the process for programming the digital and analog inputs/outputs?

A: Programming the 6 digital inputs, 2 digital outputs, 1 analog input, and 1 analog output is done via the VFDs onboard interface or remotely through Modbus/RS485. Users can customize the functions for specific automation needs, such as start/stop signals, speed control, fault indication, or process feedback.

Q: What are the benefits of sensorless vector control compared to standard V/F control?

A: Sensorless vector control enables more precise torque and speed regulation, even at low speeds, without requiring external sensors. This results in enhanced motor performance and efficiency, outperforming traditional V/F methods in dynamic load applications.

Q: How does the high efficiency operation of this VFD contribute to reduced energy consumption?

A: With efficiency levels greater than 97%, this VFD minimizes power losses during operation, maximizing output and supporting reduced electricity usage. The high power factor (>0.94) further ensures optimum energy utilization, making this drive a sustainable choice for continuous industrial processes.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in VFD System Category

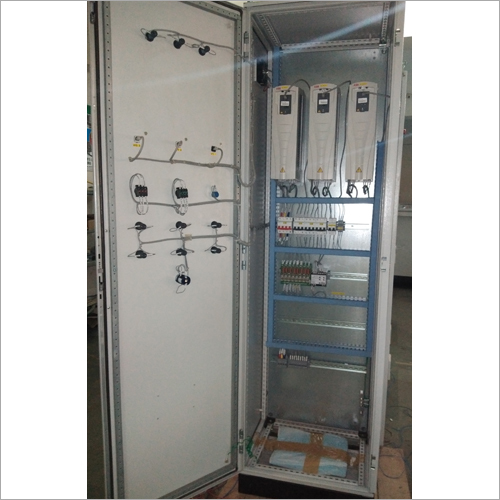

MS VFD System
